N Female Straight Connectors

Check out our new RF calculators & conversion tools...

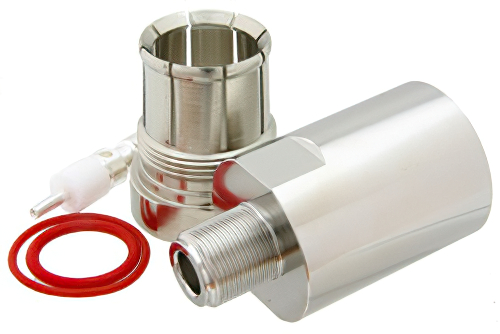

N Female Connector Clamp/Solder Attachment For 7/8 inch Helical

Product ID: PE44556
N Female Connector Clamp/Solder Attachment For 7/8 inch Helical


Image Views:  N Female Connector Clamp/Solder Attachment For 7/8 inch Helical high resolution
Zoomalternate image
View 2


Click for:PE44556 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE45036

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone


N Female Connector Clamp/Solder Attachment For 7/8 inch Helical

PE44556 type N female coaxial connector has an interface type of 7/8 inch Helical and a 50 Ohm impedance. Pasternack type N female connector uses shield/contact clamp/solder as an attachment method.

The Pasternack N type female coaxial connector has a ptfe dielectric type. The Pasternack N type coaxial connector has a brass body with tri-metal plating. This type N female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female type N connector will ship the same day as purchased. Our N type female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
