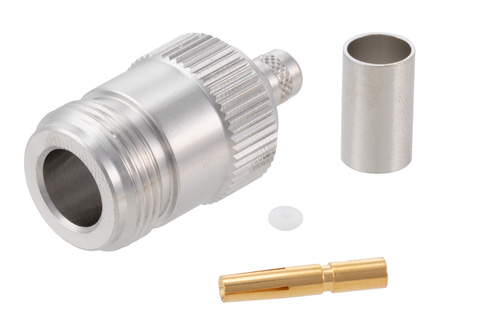

PE44533 Type N female coaxial connector has an interface type of Type N female which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables and has an impedance of 50 Ohms. Pasternack’s Type N female connector uses crimp/solder as an attachment method. Our female Type N coaxial connector provides a maximum frequency of 11 GHz. This Type N female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack Type N female coaxial connector has a PTFE dielectric type. Pasternack’s Type N coaxial connector has a brass body with tri-metal plating. Our PE44533 Type N connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE44533 Type N connector operates at a temperature range of -65 to 165 deg C. This Type N connector has a gold inner contact plating. The Pasternack Type Nfemale connector has a maximum operating voltage of 830 Vrms and a dielectric withstanding voltage of 2,500 Vrms. Our Type N female connector has a length of 1.45 inches, a width of 0.67 inches, and a weight of 0.069 lbs.
This Pasternack female Type N connector will ship the same business day as purchased. Our Type Nfemale connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
