N Female Straight Connectors

Check out our new RF calculators & conversion tools...

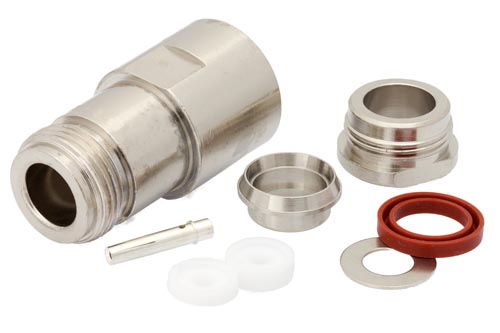

N Female Connector Clamp/Solder (Captive Contact) Attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215

Product ID: PE4059
N Female Connector Clamp/Solder (Captive Contact) Attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215


Image Views:  N Female Connector Clamp/Solder (Captive Contact) Attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215 high resolution
Zoomalternate image
View 2


Click for:PE4059 Datasheet
Click for:PE4059 RoHS Cert
Click for:PE4059 REACH Cert
Available Quantity: 4
Pricing Table
QUANTITYPRICE
1-24$28.17
25-49$26.20
50-99$24.23
100-249$22.54
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder (Captive Contact)
Mount MethodNone


N Female Connector Clamp/Solder (Captive Contact) Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393

PE4059 type N female coaxial connector has an interface type of RG213, RG214, RG8, RG9, RG11, RG225, RG393 and a 50 Ohm impedance. Pasternack type N female connector uses shield/contact clamp/solder (captive contact) as an attachment method.

The Pasternack type N female coaxial connector has a ptfe dielectric type. The Pasternack type N coaxial connector has a brass body with nickel plating. This type N female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female N type connector will ship the same day as purchased. Our type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
