N Female Straight Connectors

Check out our new RF calculators & conversion tools...

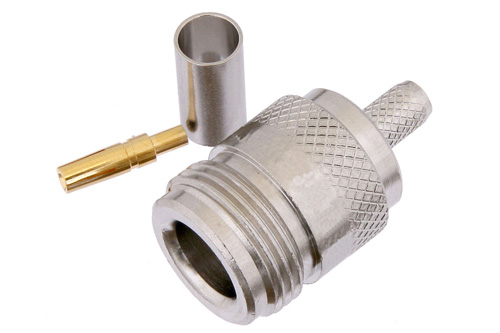

N Female Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

Product ID: PE4134
N Female Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400


Image Views:  N Female Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400 high resolution
Zoomalternate image
View 2


Click for:PE4134 Datasheet
Click for:PE4134 RoHS Cert
Click for:PE4134 REACH Cert
Available Quantity: 2,869
Pricing Table
QUANTITYPRICE
1-24$17.28
25-49$16.42
50-99$15.55
100-249$14.86
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


N Female Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

PE4134 type N female coaxial connector has an interface type of RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack type N female connector uses shield/contact crimp/solder as an attachment method. Our female N type coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack type N female coaxial connector has a ptfe dielectric type and a VSWR of 1.3. The Pasternack type N coaxial connector has a brass body with nickel plating. Our PE4134 type N connector uses brass contact. This type N female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female type N connector will ship the same day as purchased. Our type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom N type connector cable assemblies that will ship the same day as well.
