N Female Straight Connectors

Check out our new RF calculators & conversion tools...

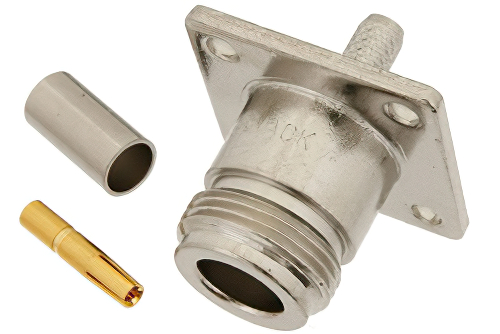

N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing

Product ID: PE44069
N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing


Image Views:  N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing high resolution
Zoomalternate image
View 2


Click for:PE44069 Datasheet
Click for:PE44069 RoHS Cert
Click for:PE44069 REACH Cert
Available Quantity: 1,707
Pricing Table
QUANTITYPRICE
1-24$22.80
25-49$21.20
50-99$19.61
100-249$18.24
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount Method4 Hole Flange
Minimum FrequencyDC
Maximum Frequency11 GHz


N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing

PE44069 type N female 4 hole flange coaxial connector has an interface type of RG58 and a 50 Ohm impedance. Pasternack type N female 4 hole flange connector uses shield/contact crimp/solder as an attachment method. Our female N type coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack type N female 4 hole flange coaxial connector has a teflon dielectric type. The Pasternack type N coaxial connector has a brass body with nickel plating. Our PE44069 type N connector uses brass contact. This type N female 4 hole flange coaxial RF connector is RoHS and REACH compliant.

This Pasternack female N type 4 hole flange connector will ship the same day as purchased. Our 4 hole flange type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
