N Female Straight Connectors

Check out our new RF calculators & conversion tools...

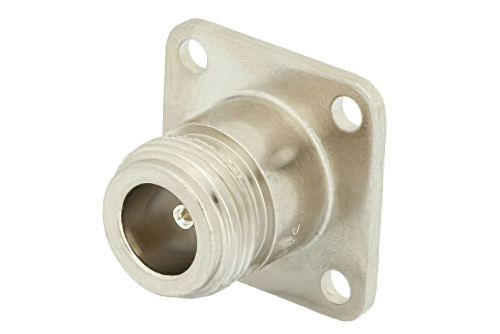

N Female Field Replaceable Connector 4 Hole Flange Mount Slotted Contact Terminal, 1.0 inch Sq. Flange Watt Meter Connector

Product ID: PE44722
N Female Field Replaceable Connector 4 Hole Flange Mount Slotted Contact Terminal, 1.0 inch Sq. Flange Watt Meter Connector


Image Views:  N Female Field Replaceable Connector 4 Hole Flange Mount Slotted Contact Terminal, 1.0 inch Sq. Flange Watt Meter Connector high resolution
Zoomalternate image
View 2


Click for:PE44722 Datasheet
Click for:PE44722 RoHS Cert
Click for:PE44722 REACH Cert
Available Quantity: 190
Pricing Table
QUANTITYPRICE
1-24$28.34
25-49$26.36
50-99$24.37
100-249$22.67
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodField Replaceable
Mount Method4 Hole Flange
Minimum FrequencyDC
Maximum Frequency11 GHz


N Female Connector Field Replaceable Attachment 4 Hole Flange Slotted Contact Terminal, 1.0 Sq. Flange Watt Meter Connector

PE44722 type N female 4 hole flange terminal connector has an interface type of slotted contact and a 50 Ohm impedance. Pasternack type N female 4 hole flange connector uses shield/contact as an attachment method. Our female N type terminal connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack type N female 4 hole flange terminal connector has a ptfe dielectric type. The Pasternack type N terminal connector has a brass body with nickel plating. This type N female 4 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack female type N 4 hole flange connector will ship the same day as purchased. Our 4 hole flange type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom N type connector cable assemblies that will ship the same day as well.
