TNC Male to Type N Female Cable Assemblies

Check out our new RF calculators & conversion tools...

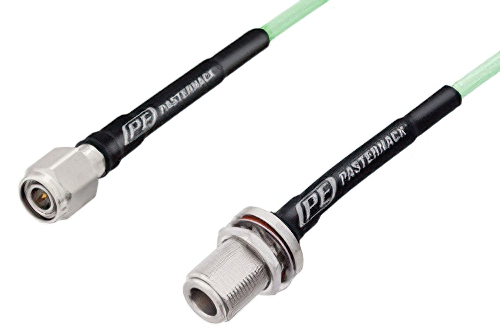

N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS

Product ID: PE3C1110
N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS

Image Views:  N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS high resolution
Zoom


Click for:PE3C1110 Datasheet
Click for:PE3C1110 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P142LL
RF Cable TypePE-P142LL
RF Cable Impedance50


N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS

PE3C1110 is a type N female bulkhead to TNC male cable using PE-P142LL coax. This Pasternack N type female bulkhead to TNC male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm TNC for connector 2.

Our female N type bulkhead to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C1110 type N female bulkhead to TNC male cable assembly is constructed with PE-P142LL coax and the maximum VSWR is 1.45:1.
