TNC Male to Type N Female Cable Assemblies

Check out our new RF calculators & conversion tools...

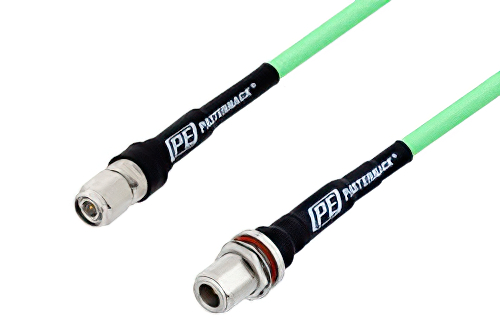

N Female Bulkhead to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS

Product ID: PE3C1084
N Female Bulkhead to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS

Image Views:  N Female Bulkhead to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS high resolution
Zoom


Click for:PE3C1084 Datasheet
Click for:PE3C1084 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P300LL
RF Cable TypePE-P300LL
RF Cable Impedance50


N Female Bulkhead to TNC Male Low Loss Test Cable Using PE-P300LL Coax, RoHS

PE3C1084 is a type N female bulkhead to TNC male cable using PE-P300LL coax. This Pasternack type N female bulkhead to TNC male cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm TNC for connector 2.

Our female type N bulkhead to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C1084 N type female bulkhead to TNC male cable assembly is constructed with PE-P300LL coax and the maximum VSWR is 1.35:1.
