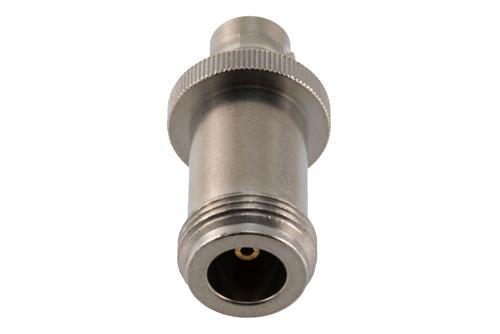

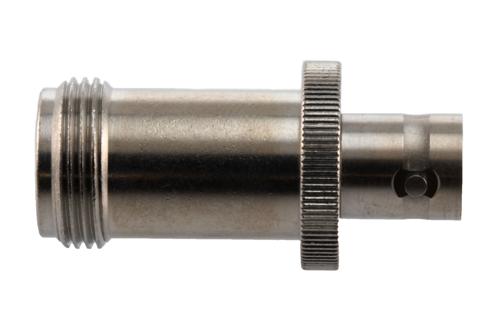

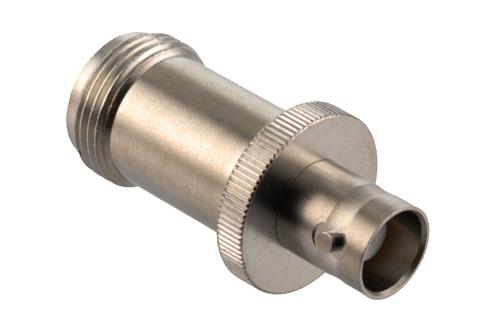

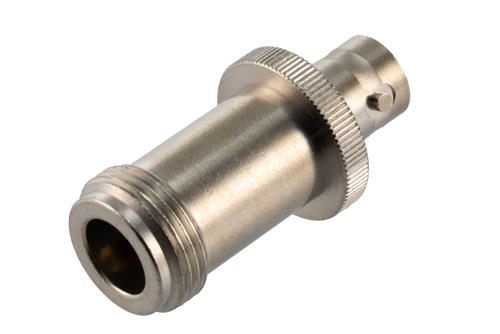

The type N to BNC adapter PE910039 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance. This RF adapter has a female to female gender configuration, which provides easier connections in tighter spaces. Our type N to BNC adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 11 GHz. This RF adapter has a dielectric withstanding voltage of 1,500 Vrms.
This type N female to BNC female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910039 female type N to female BNC adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Pasternack’s PE910039 radio frequency adapter has a typical VSWR of 1.25:1. Our adapter has a maximum insertion loss of 0.198 dB. This RF adapter has a 1.508-inch length, 0.748-inch width, and 0.075 lbs weight.
The PE910039 adapter from Pasternack is made from a brass connector body and has a beryllium copper center contact. Our type N female to BNC female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of type N to BNC radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 11 GHz RF adapter that meets your requirements.
