Type N Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

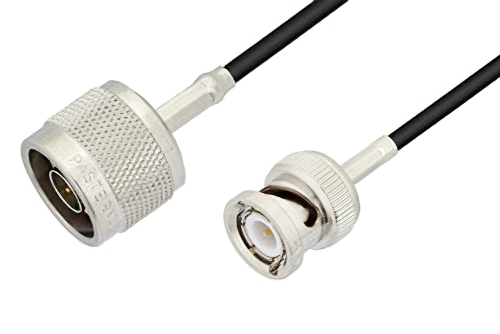

N Male to BNC Male Cable 6 Inch Length Using RG174 Coax

Product ID: PE3C3378-6
N Male to BNC Male Cable 6 Inch Length Using RG174 Coax

Image Views:  N Male to BNC Male Cable 6 Inch Length Using RG174 Coax high resolution
Zoom


Available Quantity: 2,631
Standard Lengths
12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$39.65
25-49$37.67
50-99$35.69
100-249$34.10
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


N Male to BNC Male Cable 6 Inch Length Using RG174 Coax

PE3C3378-6 is a type N male to BNC male cable using RG174 coax. This Pasternack type N male to BNC male cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm BNC for connector 2.

Our male type N to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3378-6 N type male to BNC male cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
