Type N Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

N Male to BNC Male Cable 36 Inch Length Using RG188 Coax

Product ID: PE3248-36

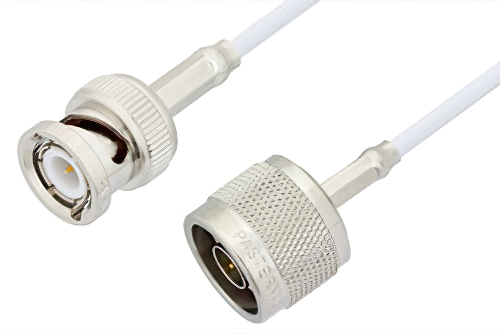

N Male to BNC Male Cable 36 Inch Length Using RG188 Coax

Image Views:  N Male to BNC Male Cable 36 Inch Length Using RG188 Coax high resolution
Zoom


Click for:PE3248-36 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3379-36

Standard Lengths
12 in.24 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


N Male to BNC Male Cable 36 Inch Length Using RG188 Coax

PE3248-36 is a type N male to BNC male cable using RG188 coax. This Pasternack N type male to BNC male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm BNC for connector 2.

Our male type N to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3248-36 N type male to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
