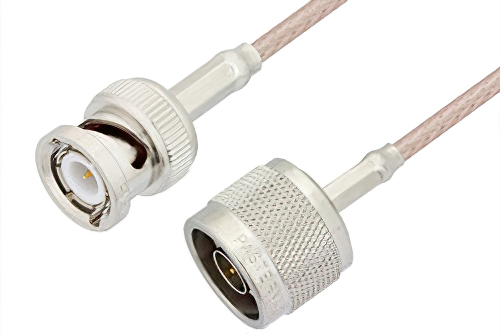

N Male to BNC Male Cable 48 Inch Length Using RG316-DS Coax

Product ID: PE3261-48
N Male to BNC Male Cable 48 Inch Length Using RG316-DS Coax

Image Views:  N Male to BNC Male Cable 48 Inch Length Using RG316-DS Coax high resolution
Zoom


Click for:PE3261-48 Datasheet
DISCONTINUED PRODUCT

Standard Lengths
6 in.12 in.18 in.24 in.36 in.60 in.72 in.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50


N Male to BNC Male Cable 48 Inch Length Using RG316-DS Coax

PE3261-48 is a type N male to BNC male cable using RG316-DS coax. This Pasternack type N male to BNC male cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm BNC for connector 2.

Our male type N to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3261-48 type N male to BNC male cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
