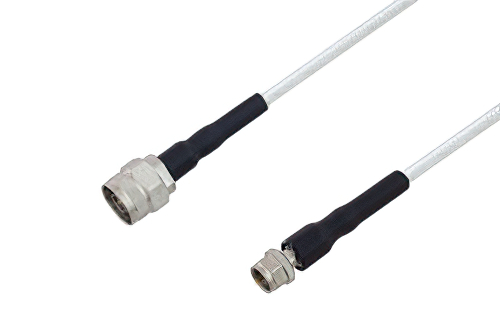

75 Ohm N Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS
Product ID:
PE3TC1205
Length
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | N |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 75 |
| Connector Series 2 | F |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 75 |
| RF Cable Part Number | PE-SF200LL75 |
| RF Cable Type | PE-SF200LL75 |
| RF Cable Impedance | 75 |
Description
75 Ohm N Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS
PE3TC1205 is a N type male to F type male cable using PE-SF200LL75 coax. This Pasternack type N male to type F male cable assembly uses a 75 Ohm type N for connector 1 and a 75 Ohm type F for connector 2.
Our male N type to male F type cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3TC1205 type N male to type F male cable assembly is constructed with PE-SF200LL75 coax and the maximum VSWR is 1.35:1.
