75 Ohm N Male Straight Connectors

Check out our new RF calculators & conversion tools...

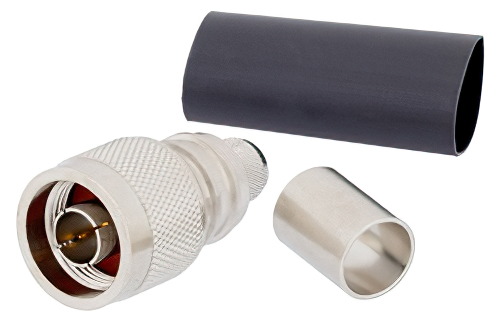

75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75

Product ID: EZ-400-NM-75
75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75


Image Views:  75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75 high resolution
Zoomalternate image
View 2


Click for:EZ-400-NM-75 Datasheet
Click for:EZ-400-NM-75 RoHS Cert
Click for:EZ-400-NM-75 REACH Cert
DISCONTINUED PRODUCT
Replaced By: EZ-400-NMH-75-X
Remaining Quantity Available: 44
Pricing Table
Price: $36.75
Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance75 Ohm
Body StyleStraight
Attachment MethodCrimp/Non-Solder Contact
Mount MethodNone


75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75

EZ-400-NM-75 type N male coaxial connector has an interface type of LMR-400-75 and a 75 Ohm impedance. Pasternack type N male connector uses shield/contact crimp/non-solder contact as an attachment method.

The Pasternack type N male coaxial connector has a teflon dielectric type. The Pasternack type N coaxial connector has a brass body with nickel plating. Our EZ-400-NM-75 type N connector uses brass contact. This N type male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male N type connector will ship the same day as purchased. Our type N male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.

*LMR™ is a Trademark of Times Microwave
