Type N to MCX Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

N Male to MCX Jack Adapter

Product ID: PE9464

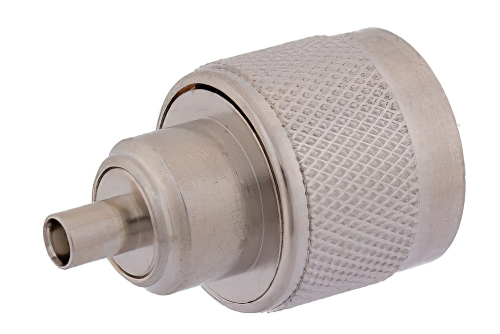

N Male to MCX Jack Adapter

Image Views:  N Male to MCX Jack Adapter high resolution
Zoom


Click for:PE9464 Datasheet
Click for:PE9464 RoHS Cert
Click for:PE9464 REACH Cert
Available Quantity: 57
Pricing Table
QUANTITYPRICE
1-24$102.82
25-49$95.62
50-99$88.43
100-249$82.26
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2MCX
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


N Male to MCX Jack Adapter

Type N adapter PE9464 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to MCX adapter is a between series coaxial adapter design. This 50 Ohm N type adapter is precision manufactured to RF components industry specifications.

Type N male to MCX jack adapter is one of the many RF components that ship same day as they are ordered. PE9464 male type N to jack MCX adapter has a straight body. This Pasternack straight type N coax adapter is a in-line RF adapter.

Our male N type to jack MCX adapter PE9464 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to MCX radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
