Type N Female to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

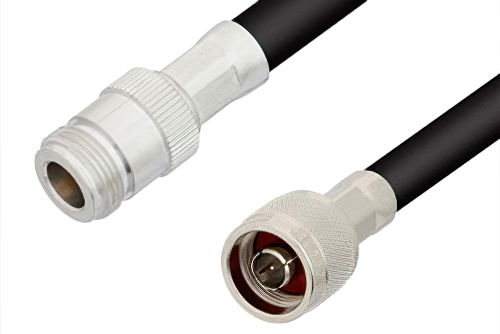

N Male to N Female Cable Using PE-B405 Coax

Product ID: PE33011
N Male to N Female Cable Using PE-B405 Coax

Image Views:  N Male to N Female Cable Using PE-B405 Coax high resolution
Zoom


Click for:PE33011 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Cable Assemblies.
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-B405
RF Cable TypePE-B405
RF Cable Impedance50


N Male to N Female Cable Using PE-B405 Coax

PE33011 is a type N male to type N female cable using PE-B405 coax. This Pasternack N type male to N type female cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male type N to female type N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33011 N type male to N type female cable assembly is constructed with PE-B405 coax.
