N Male to N Female Bulkhead Cable Using PE-C240 Coax

Product ID: PE38672

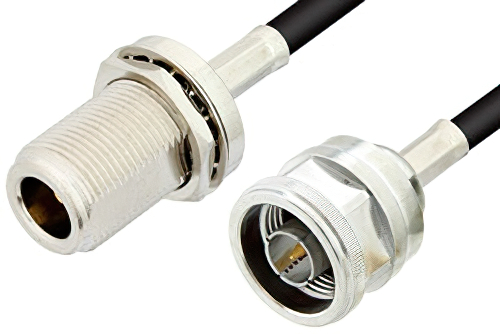

N Male to N Female Bulkhead Cable Using PE-C240 Coax

Image Views:  N Male to N Female Bulkhead Cable Using PE-C240 Coax high resolution
Zoom


Click for:PE38672 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
36 in.48 in.60 in.72 in.120 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberPE-C240
RF Cable TypePE-C240
RF Cable Impedance50


N Male to N Female Bulkhead Cable Using PE-C240 Coax

PE38672 is a type N male to type N female bulkhead cable using PE-C240 coax. This Pasternack type N male to type N female bulkhead cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm type N for connector 2.

Our male type N to female type N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38672 N type male to N type female bulkhead cable assembly is constructed with PE-C240 coax and the maximum VSWR is 1.4:1.
