Type N Female to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

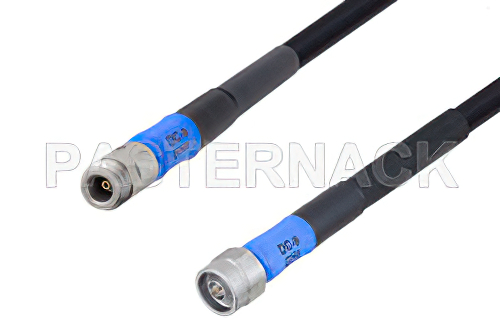

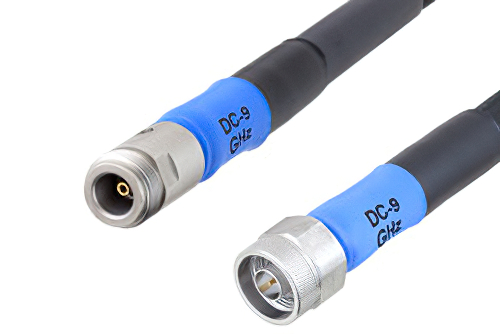

Handheld RF Analyzer Rugged Phase Stable Cable N Male to N Female Cable Using PE-FF430 Coax, RoHS

Product ID: PE3C4004
Handheld RF Analyzer Rugged Phase Stable Cable N Male to N Female Cable Using PE-FF430 Coax, RoHS


Image Views:  Handheld RF Analyzer Rugged Phase Stable Cable N Male to N Female Cable Using PE-FF430 Coax, RoHS high resolution
Zoomalternate image
View 2


Click for:PE3C4004 Datasheet
Click for:PE3C4004 RoHS Cert
Click for:PE3C4004 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
60 in.144 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-FF430
RF Cable TypePE-FF430
RF Cable Impedance50


Handheld RF Analyzer Rugged Phase Stable Cable N Male to N Female Cable Using PE-FF430 Coax, RoHS

PE3C4004 is a type N male to type N female cable using PE-FF430 coax. This Pasternack type N male to type N female cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm N type for connector 2.

Our male type N to female type N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4004 type N male to type N female cable assembly is constructed with PE-FF430 coax and the maximum VSWR is 1.2:1.
