Type N Female to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

N Male to N Female Bulkhead Cable Using PE-P142LL Coax

Product ID: PE344

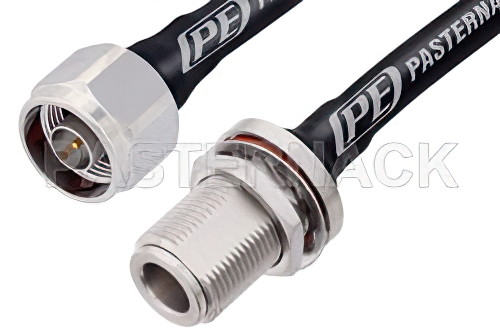

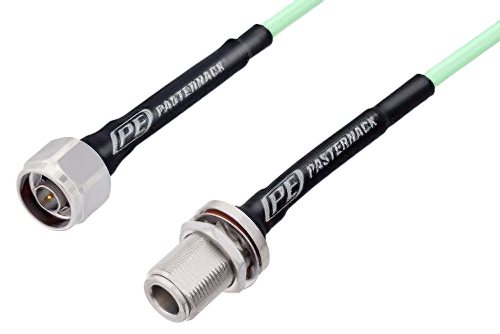

N Male to N Female Bulkhead Cable Using PE-P142LL Coax


Image Views:  N Male to N Female Bulkhead Cable Using PE-P142LL Coax high resolution
Zoomalternate image
View 2


Click for:PE344 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberPE-P142LL
RF Cable TypePE-P142LL
RF Cable Impedance50


N Male to N Female Bulkhead Low Loss Test Cable Using PE-P142LL Coax, RoHS

PE344 is a type N male to type N female bulkhead cable using PE-P142LL coax. This Pasternack type N male to type N female bulkhead cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to female N type bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE344 type N male to type N female bulkhead cable assembly is constructed with PE-P142LL coax and the maximum VSWR is 1.35:1.
