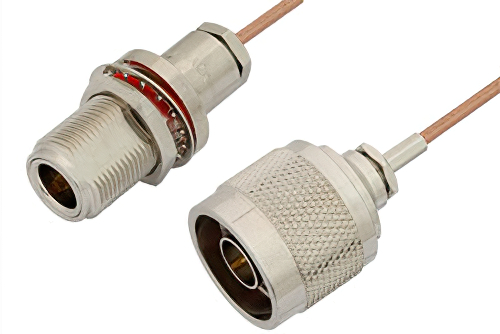

N Male to N Female Bulkhead Cable 72 Inch Length Using RG178 Coax, RoHS

Product ID: PE34201LF-72

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$142.99
25-49$135.84
50-99$128.69
100-249$122.97
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 233
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50 Ohm
Length72 inches

Description

N Male to N Female Bulkhead Cable 72 Inch Length Using RG178 Coax, RoHS

The PE34201LF-72 is an N male to N female bulkhead cable assembly designed for RG178B/U coax, offering 50 Ohm impedance and 3 GHz operation. It supports panel feedthrough routing in RF and electronic system integration where a bulkhead interface simplifies enclosure transitions. Brass connector bodies and gold-plated brass contacts pair with FEP jacketed RG178B/U flexible coax for reliable interconnect performance.

Pasternack RF coax cable assembly is built with type N cable connection on one end and type N bulkhead cable connection on the other. Our type N to N type cable assemblies have a male gender on end 1 and female on end 2. This N type to type N cable is a male to female coax assembly, PE34201LF-72, can also be known as a type N plug to N type jack cable assembly and will be shipped same-day as it is purchased.

Type N plug to type N jack cable assembly PE34201LF-72 is built with RG178 which is a flexible coax type. The Pasternack flexible N cable assembly is manufactured with type N to type N cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 3 GHz maximum frequency N type male to type N female bulkhead cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE34201LF-72 can also be used in the other direction and will be N type female bulkhead to type N male cable assembly if the opposite connectivity is required.

Type N plug to N type jack bulkhead cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality type N to type N cable assembly for quick shipment worldwide. Variations of type N cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this N male to N female bulkhead cable 72 inch length using RG178 coax, RoHS.

Frequently Asked Questions

What is the PE34201LF-72 RF cable assembly?

The PE34201LF-72 is an N male to N female bulkhead RF cable assembly built with RG178B/U flexible coax for 50 Ohm systems. It features straight N connectors, brass bodies, gold-plated brass contacts, and a 3 GHz operating frequency maximum. Engineers use it when a signal must pass through an enclosure panel without changing to another connector series. This configuration helps maintain a standard N interface on both sides while simplifying internal cable routing.

When would I use a bulkhead RF cable assembly like the PE34201LF-72?

The PE34201LF-72 is used when an RF connection must pass through a panel, chassis, or equipment wall cleanly. Its bulkhead configuration creates a secure mounted interface, while RG178B/U flexible coax handles internal routing in tighter spaces. Engineers often choose this style for test boxes, instrument panels, and integrated electronic systems using N interfaces. It helps keep external cable access simple while separating internal assemblies from the outside connection point.

Is the PE34201LF-72 suitable for 50 Ohm RF systems?

The PE34201LF-72 is designed for 50 Ohm RF systems and uses 50 Ohm N connectors with 50 Ohm RG178B/U coax. This matched impedance supports consistent integration with common RF equipment, cables, and panel-mounted system layouts. It is a practical choice for electronics engineers building signal paths that require N series connectivity through an enclosure wall. Using a matching impedance cable assembly helps avoid unnecessary interface mismatches in general RF and electronic applications.

Why choose RG178B/U coax in the PE34201LF-72 assembly?

The PE34201LF-72 uses RG178B/U coax because it provides a flexible cable option for compact RF and electronic assemblies. Its FEP jacket and small flexible format help engineers route the cable through tighter internal spaces around mounted hardware. This makes the assembly useful in enclosures, control panels, and bench fixtures where a bulkhead interface is required. The combination of flexibility and N connector interfaces supports practical installation without adding unnecessary cable stiffness.
