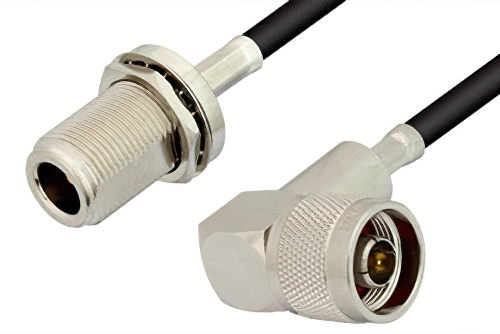

N Male Right Angle to N Female Bulkhead Cable Using RG223 Coax

Product ID: PE33536

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50
RF Cable Part Number	RG223/U
RF Cable Type	RG223
RF Cable Impedance	50

Description

N Male Right Angle to N Female Bulkhead Cable Using RG223 Coax

PE33536 is a type N male right angle to type N female bulkhead cable using RG223 coax. This Pasternack type N male right angle to type N female bulkhead cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm type N for connector 2. type N right angle to type N coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N type right angle to female N type bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33536 type N male right angle to type N female bulkhead cable assembly is constructed with RG223 coax and the maximum VSWR is 1.4:1.
