N Male to N Female Bulkhead Cable Using RG223 Coax

Product ID: PE3686
N Male to N Female Bulkhead Cable Using RG223 Coax

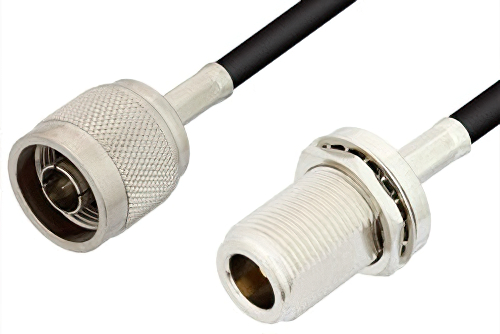

Image Views:  N Male to N Female Bulkhead Cable Using RG223 Coax high resolution
Zoom


Click for:PE3686 Datasheet
Click for:PE3686 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


N Male to N Female Bulkhead Cable Using RG223 Coax

PE3686 is a N type male to N type female bulkhead cable using RG223 coax. This Pasternack type N male to type N female bulkhead cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to female N type bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3686 type N male to type N female bulkhead cable assembly is constructed with RG223 coax.
