N Male to N Female Cable Using RG402 Coax

Product ID: PE3829LF

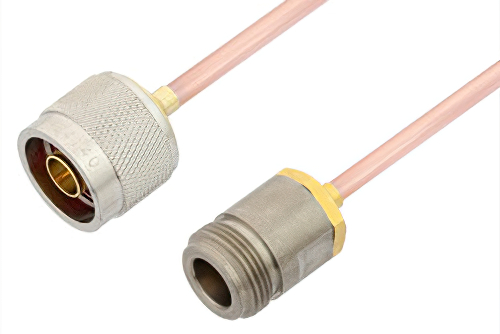

N Male to N Female Cable Using RG402 Coax

Image Views:  N Male to N Female Cable Using RG402 Coax high resolution
Zoom


Click for:PE3829LF Datasheet
Click for:PE3829LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG402/U
RF Cable TypeRG402
RF Cable Impedance50


N Male to N Female Cable Using RG402 Coax

PE3829LF is a N type male to N type female cable using RG402 coax. This Pasternack type N male to type N female cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm N type for connector 2.

Our male type N to female type N cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3829LF type N male to type N female cable assembly is constructed with RG402 coax.
