Type N Female to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

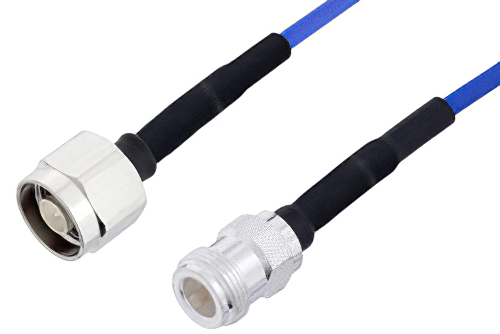

N Male to N Female LSZH Jacketed Low PIM Cable Using SR402FLJ Low PIM Coax with HeatShrink, RoHS

Product ID: PE3C2001
N Male to N Female LSZH Jacketed Low PIM Cable Using SR402FLJ Low PIM Coax with HeatShrink, RoHS

Image Views:  N Male to N Female LSZH Jacketed Low PIM Cable Using SR402FLJ Low PIM Coax with HeatShrink, RoHS high resolution
Zoom


Click for:PE3C2001 Datasheet
Click for:PE3C2001 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
100 cm.200 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR402FLJ Low PIM
RF Cable TypePE-SR402FLJ Low PIM
RF Cable Impedance50


N Male to N Female LSZH Jacketed Cable Using SR402FLJ Low PIM Coax, RoHS

PE3C2001 is a N type male to N type female cable using PE-SR402FLJ Low PIM coax. This Pasternack type N male to type N female cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm type N for connector 2.

Our male type N to female type N cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3C2001 N type male to N type female cable assembly is constructed with PE-SR402FLJ Low PIM coax and the maximum VSWR is 1.25:1.
