Type N Female to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

VNA Ruggedized Test Cable N Male to N Female 18GHz, RoHS

Product ID: PE3VNA1804

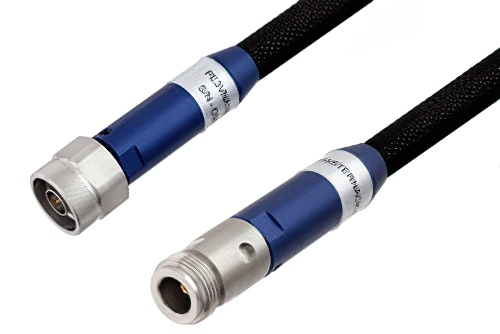

VNA Ruggedized Test Cable N Male to N Female 18GHz, RoHS

Image Views:  VNA Ruggedized Test Cable N Male to N Female 18GHz, RoHS high resolution
Zoom


Click for:PE3VNA1804 Datasheet
Click for:PE3VNA1804 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA-R
RF Cable TypePE-VNA-R
RF Cable Impedance50


VNA Ruggedized Test Cable N Male to N Female 18GHz, RoHS

PE3VNA1804 is a type N male to type N female cable using PE-VNA-R coax. This Pasternack type N male to type N female cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to female N type cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3VNA1804 type N male to type N female cable assembly is constructed with PE-VNA-R coax and the maximum VSWR is 1.25:1.
