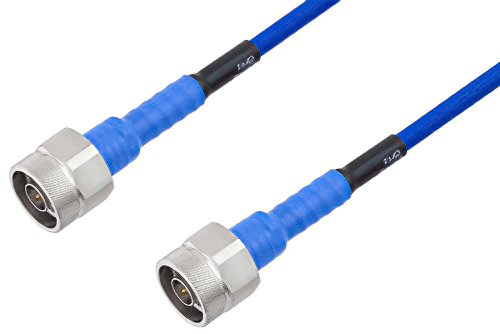

PE-TC195 Series Phase Stable Test Cable N Male to N Male to 18 GHz ,RoHS

Product ID: PE3TC0103
PE-TC195 Series Phase Stable Test Cable N Male to N Male to 18 GHz ,RoHS

Image Views:  PE-TC195 Series Phase Stable Test Cable N Male to N Male to 18 GHz ,RoHS high resolution
Zoom


Click for:PE3TC0103 Datasheet
Click for:PE3TC0103 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-80TEST
RF Cable TypePE-TC195
RF Cable Impedance50


PE-TC195 Series Phase Stable Test Cable N Male to N Male to 18 GHz ,RoHS

PE3TC0103 is a N type male to N type male cable using PE-TC195 coax. This Pasternack type N male to type N male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to male N type cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3TC0103 type N male to type N male cable assembly is constructed with PE-TC195 coax and the maximum VSWR is 1.25:1.
