Type N Male Right Angle to Type N Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

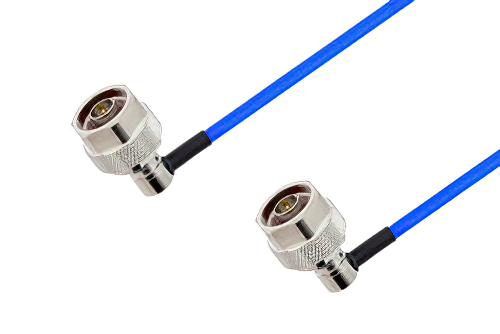

N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS

Product ID: PE3CA1049
N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS

Image Views:  N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS high resolution
Zoom


Click for:PE3CA1049 Datasheet
Click for:PE3CA1049 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.50 cm.100 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141EAM
RF Cable TypePE-P141FLEX
RF Cable Impedance50


N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS

PE3CA1049 is a type N male right angle to type N male right angle cable using PE-P141FLEX coax. This Pasternack type N male right angle to type N male right angle cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2. N type right angle to N type right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male type N right angle to male type N right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1049 N type male right angle to N type male right angle cable assembly is constructed with PE-P141FLEX coax and the maximum VSWR is 1.35:1.
