Type N Male to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

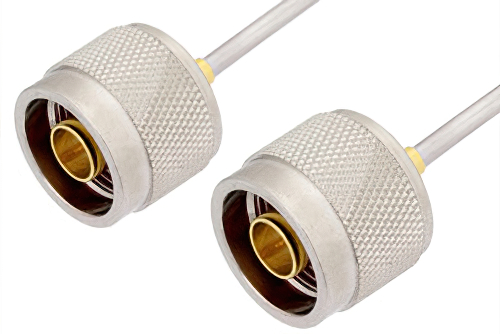

N Male to N Male Cable Using PE-SR405AL Coax

Product ID: PE34140LF
N Male to N Male Cable Using PE-SR405AL Coax

Image Views:  N Male to N Male Cable Using PE-SR405AL Coax high resolution
Zoom


Click for:PE34140LF Datasheet
Click for:PE34140LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR405AL
RF Cable TypePE-SR405AL
RF Cable Impedance50


N Male to N Male Cable Using PE-SR405AL Coax

PE34140LF is a N type male to N type male cable using PE-SR405AL coax. This Pasternack type N male to type N male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to male N type cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE34140LF type N male to type N male cable assembly is constructed with PE-SR405AL coax.
