Type N Male to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

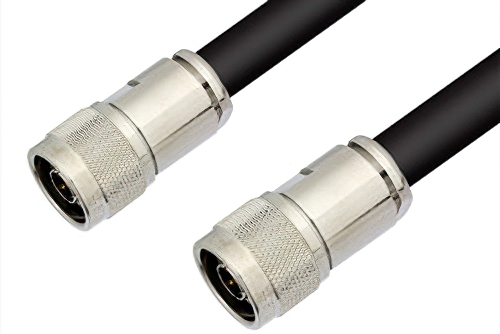

N Male to N Male Cable Using RG217 Coax, RoHS

Product ID: PE3997LF
N Male to N Male Cable Using RG217 Coax, RoHS

Image Views:  N Male to N Male Cable Using RG217 Coax, RoHS high resolution
Zoom


Click for:PE3997LF Datasheet
Click for:PE3997LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.84 in.96 in.108 in.120 in.144 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG217/U
RF Cable TypeRG217
RF Cable Impedance50


N Male to N Male Cable Using RG217 Coax, RoHS

PE3997LF is a type N male to type N male cable using RG217 coax. This Pasternack type N male to type N male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm type N for connector 2.

Our male N type to male N type cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3997LF type N male to type N male cable assembly is constructed with RG217 coax.
