Type N Male Right Angle to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

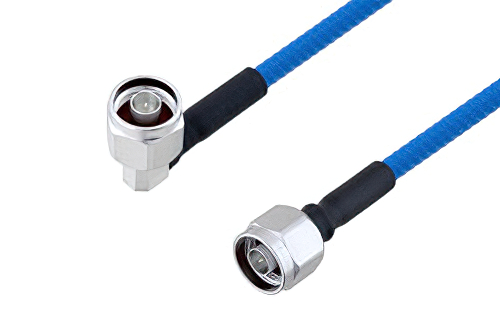

Plenum N Male Right Angle to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

Product ID: PE3C4139-100CM
Plenum N Male Right Angle to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

Image Views:  Plenum N Male Right Angle to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS high resolution
Zoom


Click for:PE3C4139-100CM Datasheet
Click for:PE3C4139-100CM RoHS Cert
Click for:PE3C4139-100CM REACH Cert
Available Quantity: 15
Standard Lengths
200 cm.
Pricing Table
QUANTITYPRICE
1-1$95.21
2-4$93.31
5-9$91.40
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberSPP-250-LLPL
RF Cable TypeSPP-250-LLPL
RF Cable Impedance50 Ohm


Plenum N Male Right Angle to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4139-100CM is a type N male right angle to type N male cable using SPP-250-LLPL coax. This Pasternack type N male right angle to type N male cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm type N for connector 2. type N right angle to type N coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N type right angle to male N type cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4139-100CM N type male right angle to N type male cable assembly is constructed with SPP-250-LLPL coax and the maximum VSWR is 1.35:1.
