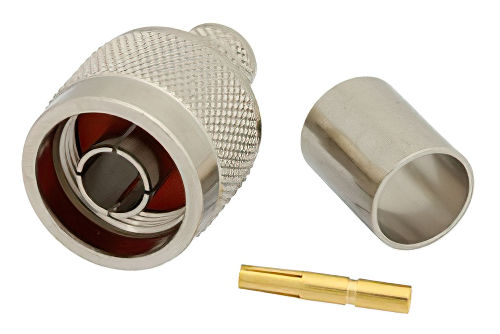

RP N Male Connector Crimp/Solder Attachment for RG213, RG8, RG215

Product ID: PE44472

Pricing

QuantityPrice
1-24$42.91
25-49$40.76
50-99$38.62
100-249$36.90
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 95
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Polarity
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency2.5 GHz
Interface Type 1RG213
Interface Type 2RG8
Interface Type 3RG215

Description

RP N Male Connector Crimp/Solder Attachment for RG213, RG8, RG215

PE44472 reverse polarity type N male coaxial connector has an interface type of RG213, RG8, RG215 and a 50 Ohm impedance. Pasternack reverse polarity type N male connector uses shield/contact crimp/solder as an attachment method. Our reverse polarity male type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 2.5 GHz.

The Pasternack reverse polarity N type male coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack N type coaxial connector has a brass body with tri-metal plating. Our PE44472 reverse polarity N type connector uses phosphor bronze contact. This reverse polarity type N male coaxial RF connector is RoHS and REACH compliant.

This Pasternack reverse polarity male N type connector will ship the same day as purchased. Our type N reverse polarity male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
