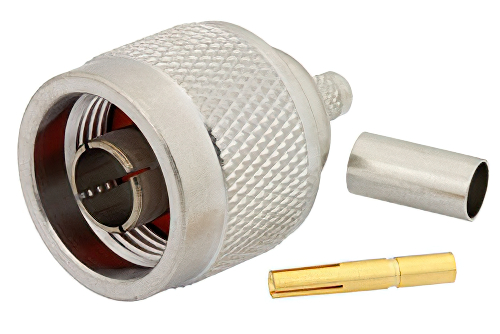

RP N Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

Product ID: PE44471
Product discontinued.
Search for alternative Connectors or contact us.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Polarity
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1RG55
Interface Type 2RG141
Interface Type 3RG142
Interface Type 4RG223
Interface Type 5RG400

Description

RP N Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

PE44471 reverse polarity type N male coaxial connector has an interface type of RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack reverse polarity type N male connector uses shield/contact crimp/solder as an attachment method. Our reverse polarity male type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack reverse polarity type N male coaxial connector has a PTFE dielectric type. The Pasternack type N coaxial connector has a brass body with tri-metal plating. Our PE44471 reverse polarity type N connector uses phosphor bronze contact. This reverse polarity N type male coaxial RF connector is RoHS and REACH compliant.

This Pasternack reverse polarity male N type connector will ship the same day as purchased. Our type N reverse polarity male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
