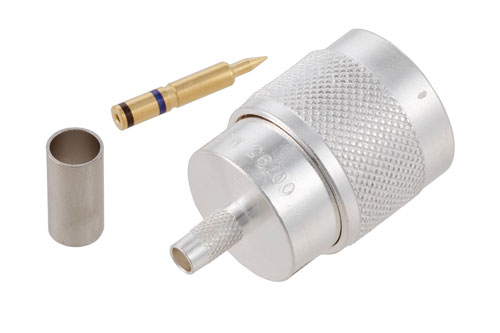

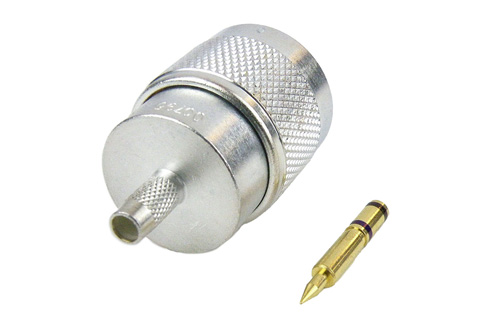

M39012/01-0503 type N male coaxial connector is a QPL listed part that has an interface type of RG223 and a 50 Ohm impedance. Pasternack's type N male connector uses crimp/solder as an attachment method. Our male type N coaxial connector provides a maximum frequency of 11 GHz.
The Pasternack type N male coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack's type N coaxial connector has a brass body with silver plating. Our M39012/01-0503 type N connector uses beryllium copper inner contact and brass outer contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This type N connector has a gold inner contact plating and a silver outer contact plating. The Pasternack type N male connector has a dielectric withstanding voltage of 2,500 Vrms.
This Pasternack male type N connector will ship the same business day as purchased. Our type N male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
