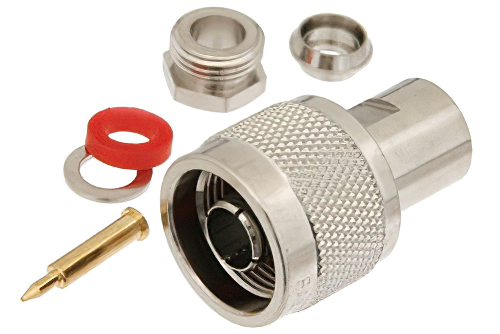

PE4331 type N male coaxial connector has an interface type of type N male which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 50 Ohms. Pasternack's type N male connector uses clamp/solder as an attachment method. Our male type N coaxial connector provides a maximum frequency of 11 GHz. This type N male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack type N male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's type N coaxial connector has a brass body with nickel plating. Our PE4331 type N connector uses agold-plated brass contact.The Pasternack RF connector block has a maximum inner conductor and outer conductor resistance of 1 mOhms and 1 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. Our high-quality PE4331 features a 100 µin minimum body plating specification. The PE4331 type N connector operates at a temperature range of -65 to 165 deg C. This type N connector has a gold inner contact plating. The Pasternack type N male connector has a maximum operating voltage of 1,500 Vrms and a dielectric withstanding voltage of 2,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our type N male connector has a length of 1.35 inches, a width of 0.827 inches, and a weight of 0.078 lbs.
This Pasternack male type N connector will ship the same business day as purchased. Our type N male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
