SMC to Type N Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

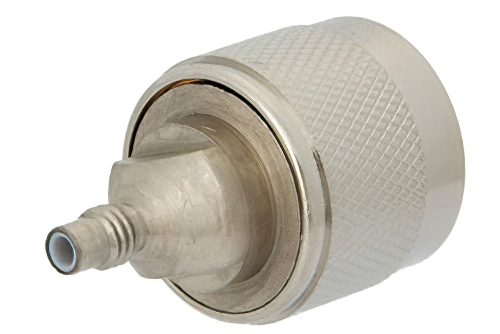

N Male to SMC Jack Adapter

Product ID: PE9317
N Male to SMC Jack Adapter

Image Views:  N Male to SMC Jack Adapter high resolution
Zoom


Click for:PE9317 Datasheet
Click for:PE9317 RoHS Cert
Click for:PE9317 REACH Cert
Available Quantity: 39
Pricing Table
QUANTITYPRICE
1-24$81.18
25-49$77.12
50-99$73.06
100-249$69.81
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


N Male to SMC Jack Adapter

Type N adapter PE9317 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to SMC adapter is a between series coaxial adapter design. This 50 Ohm type N adapter is precision manufactured to RF components industry specifications.

Type N male to SMC jack adapter is one of the many RF components that ship same day as they are ordered. PE9317 male N type to jack SMC adapter has a straight body. This Pasternack straight N type coax adapter is a in-line RF adapter.

Our male type N to jack SMC adapter PE9317 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to SMC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
