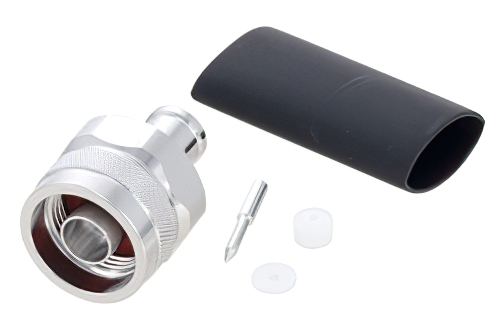

N Male Low PIM Connector Solder Attachment for SPP-250-LLPL, SPO-250, SPF-250

Product ID: TC-250-NM-LP

Pricing

Price: $13.06
* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 646
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz
Interface Type 1SPP-250-LLPL
Interface Type 2SPO-250
Interface Type 3SPF-250

Description

N Male Low PIM Connector Solder Attachment for SPP-250-LLPL, SPO-250, SPF-250

TC-250-NM-LP type N male coaxial connector has an interface type of SPP-250-LLPL, SPO-250, SPF-250 and a 50 Ohm impedance. Pasternack type N male connector uses shield/contact solder/solder as an attachment method. Our male type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack type N male coaxial connector has a PTFE dielectric type and a VSWR of 1.35. The Pasternack type N coaxial connector has a brass body with tri-metal plating. Our TC-250-NM-LP type N connector uses phosphor bronze contact. This N type male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male type N connector will ship the same day as purchased. Our type N male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom N type connector cable assemblies that will ship the same day as well.
