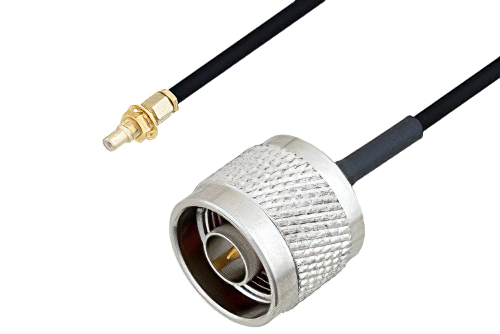

N Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax

Product ID: PE3C4452

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMC
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405FLJ
RF Cable Type	PE-SR405FLJ
RF Cable Impedance	50 Ohm

Description

N Male to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax

PE3C4452 is a type N male to SSMC jack bulkhead cable using PE-SR405FLJ coax. This Pasternack type N male to SSMC jack bulkhead cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm SSMC for connector 2.

Our male N type to jack SSMC bulkhead cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3C4452 type N male to SSMC jack bulkhead cable assembly is constructed with PE-SR405FLJ coax and the maximum VSWR is 1.4:1.
