N Male to SSMC Plug Low Loss Cable Using LMR-100 Coax

Product ID: PE3C4432

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMC
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

N Male to SSMC Plug Low Loss Cable Using LMR-100 Coax

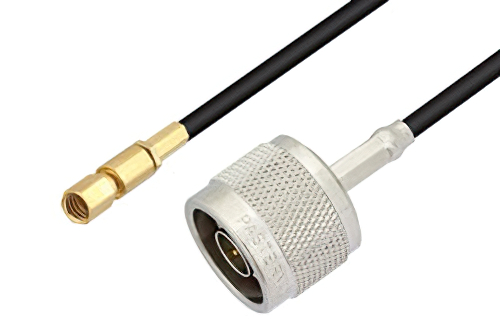

PE3C4432 is a type N male to SSMC plug cable using LMR-100A coax. This Pasternack N type male to SSMC plug cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm SSMC for connector 2.

Our male type N to plug SSMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4432 N type male to SSMC plug cable assembly is constructed with LMR-100A coax and the maximum VSWR is 1.5:1.

* LMR™ is a trademark of Times Microwave Systems.
