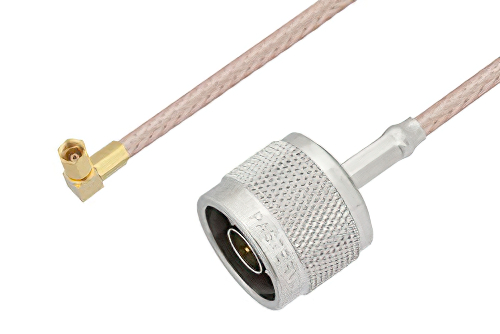

N Male to SSMC Plug Right Angle Cable Using RG316-DS Coax

Product ID: PE3C4478

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50 Ohm

Description

N Male to SSMC Plug Right Angle Cable Using RG316-DS Coax

PE3C4478 is a type N male to SSMC plug right angle cable using RG316-DS coax. This Pasternack type N male to SSMC plug right angle cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm SSMC for connector 2. type N to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N type to plug SSMC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4478 type N male to SSMC plug right angle cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.5:1.
