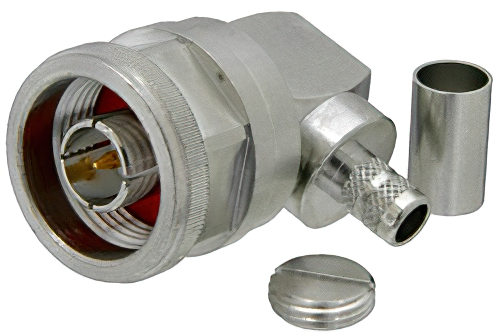

PE44525 Type N male right angle coaxial connector has an interface type of Type N male which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables and has an impedance of 50 Ohms. Pasternack’s Type N male connector uses crimp/solder as an attachment method. Our male Type N right angle coaxial connector provides a maximum frequency of 11 GHz. This Type N male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angle Type N male coaxial connector has a PTFE dielectric type. Pasternack’s Type N coaxial connector has a brass body with tri-metal plating. Our PE44525 Type Nright angle connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE44525 Type N connector operates at a temperature range of -65 to 165 deg C. This right angle Type N connector has a gold inner contact plating. Our right angle Type N male connector has a length of 1.21 inches, a width of 0.83 inches, and a weight of 0.098 lbs.
This Pasternack right angle male Type N connector will ship the same business day as purchased. Our Type Nright angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
