75 Ohm N Male Right Angle Connectors

Check out our new RF calculators & conversion tools...

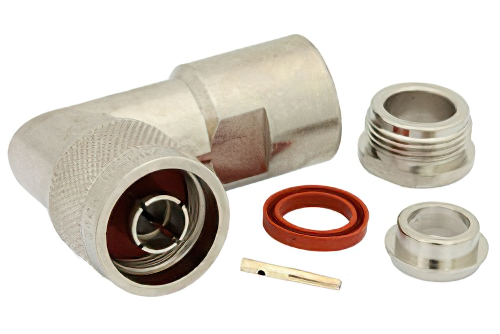

75 Ohm N Male Right Angle Connector Clamp/Solder Attachment for RG11, RG144, RG216

Product ID: PE4502
75 Ohm N Male Right Angle Connector Clamp/Solder Attachment for RG11, RG144, RG216


Image Views:  75 Ohm N Male Right Angle Connector Clamp/Solder Attachment for RG11, RG144, RG216 high resolution
Zoomalternate image
View 2


Click for:PE4502 Datasheet
Click for:PE4502 RoHS Cert
Click for:PE4502 REACH Cert
Available Quantity: Call for Availability
Pricing Table
QUANTITYPRICE
1-24$45.28
25-49$42.11
50-99$38.94
100-249$36.22
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance75 Ohm
Body StyleRight Angle
Attachment MethodClamp/Solder
Mount MethodNone


75 Ohm N Male Right Angle Connector Clamp/Solder Attachment For RG11, RG144, RG216

PE4502 type N male right angle coaxial connector has an interface type of RG11, RG144, RG216 and a 75 Ohm impedance. Pasternack type N male connector uses shield/contact clamp/solder as an attachment method.

The Pasternack right angle type N male coaxial connector has a teflon dielectric type. The Pasternack type N coaxial connector has a brass body with nickel plating. This type N male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male type N connector will ship the same day as purchased. Our N type right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
