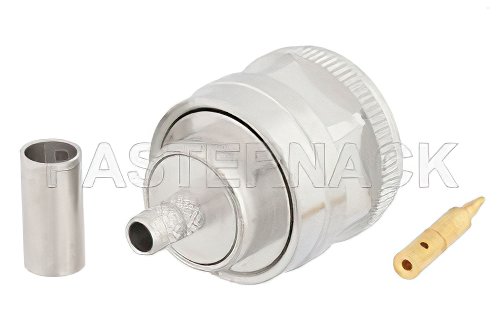

N Male Connector Crimp/Solder Attachment for RG223, RG142, RG400, RG55

Product ID: PE44788

Pricing

QuantityPrice
1-24$21.00
25-49$19.95
50-99$18.90
100-249$18.06
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 1,868
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1RG223
Interface Type 2RG142
Interface Type 3RG400
Interface Type 4RG55

Description

N Male Connector Crimp/Solder Attachment for RG223, RG142, RG400, RG55

PE44788 type N male coaxial connector has an interface type of RG223, RG142, RG400, RG55 and a 50 Ohm impedance. Pasternack type N male connector uses shield/contact crimp/solder as an attachment method. Our male N type coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack type N male coaxial connector has a PTFE dielectric type. The Pasternack type N coaxial connector has a brass body with tri-metal plating. Our PE44788 type N connector uses brass contact. This type N male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male type N connector will ship the same day as purchased. Our N type male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
