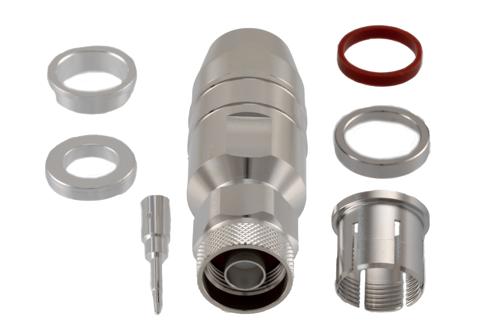

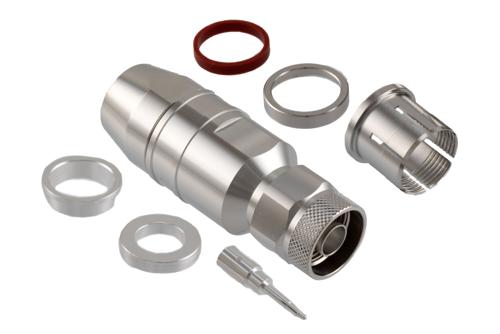

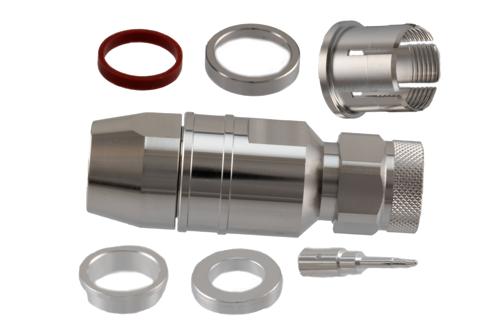

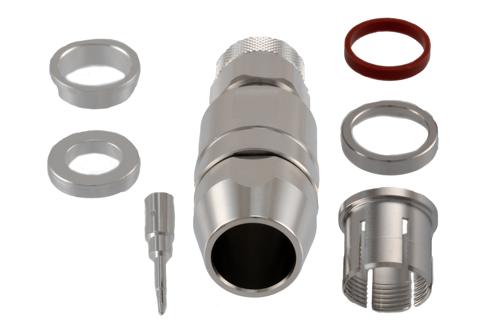

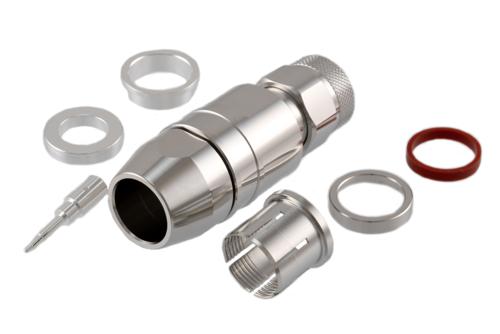

TCP-600-NMC-LP type N male coaxial connector has an interface type of type N male which is compatible with TCOM-600, TCOM-600-FR, LMR-600, LMR-600-DB, LMR-600-FR, LMR-600-UF, LMR-LW600 and PE-C600 cables and has an impedance of 50 Ohms. Pasternack's type N male connector uses clamp/solder as an attachment method. Our male type N coaxial connector provides a maximum frequency of 6 GHz. This RF connector has low passive intermodulation of a -160dBc. This type N male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack type N male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's type N coaxial connector has a brass body with tri-metal plating. Our TCP-600-NMC-LP type N connector uses asilver-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. Our high-quality TCP-600-NMC-LP features a 80 µin minimum body plating specification. The TCP-600-NMC-LP type N low PIM connector operates at a temperature range of -40 to 125 deg C. This threaded male type N coaxial RF connector has a maximum insertion loss of 0.245 dB. This type N connector has a silver inner contact plating. It also consists of a brass retaining ring that meets silver compliance. Our type N male connector has a length of 1.902 inches, a width of 0.961 inches, and a weight of 0.26 lbs.
This Pasternack low PIM male type N connector will ship the same business day as purchased. Our type N male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
