N Male Right Angle to Reverse Polarity TNC Male Cable Using LMR-400 Coax with HeatShrink

Product ID: PE3W06290/HS

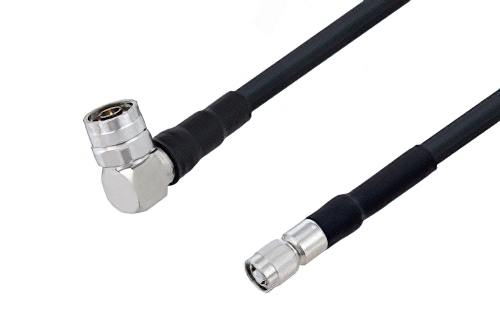

N Male Right Angle to Reverse Polarity TNC Male Cable Using LMR-400 Coax with HeatShrink

Image Views:  N Male Right Angle to Reverse Polarity TNC Male Cable Using LMR-400 Coax with HeatShrink high resolution
Zoom


Click for:PE3W06290/HS Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Click on the below images to access KitBOM product pages:


EZ-400-NMH-RA-XLMR-400PE44672KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Reverse Polarity
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberLMR-400
RF Cable TypeLMR-400
RF Cable Impedance50 Ohm


N Male Right Angle to Reverse Polarity TNC Male Cable Using LMR-400 Coax with HeatShrink

PE3W06290/HS is a N male right angle to reverse polarity TNC male cable using LMR-400 coax. This Pasternack N male right angle to reverse polarity TNC male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm TNC for connector 2. N right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N right angle to reverse polarity male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W06290/HS N male right angle to TNC reverse polarity male cable assembly is constructed with LMR-400 coax.

* LMR™ is a trademark of Times Microwave Systems.
