N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax

Product ID: PE3C4750
N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax

Image Views:  N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax high resolution
Zoom


Click for:PE3C4750 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberLMR-600-DB
RF Cable TypeLMR-600-DB
RF Cable Impedance50 Ohm

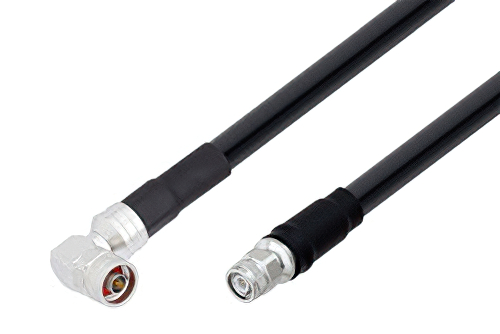

N Male Right Angle to TNC Male Cable Using LMR-600-DB Coax

PE3C4750 is a N type male right angle to TNC male cable using LMR-600-DB coax. This Pasternack type N male right angle to TNC male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm TNC for connector 2. type N right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N type right angle to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4750 type N male right angle to TNC male cable assembly is constructed with LMR-600-DB coax and the maximum VSWR is 1.4:1.

* LMR™ is a trademark of Times Microwave Systems.
