Radio frequency assembly N male to SMA male cable using RG402 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The N male to SMA male cable using RG402 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom type N to SMA cable assembly orders will ship the same business day as well.

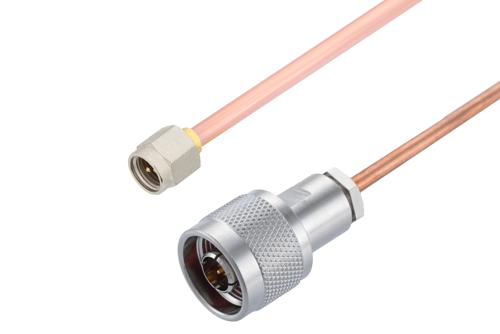

Pasternack RF coax cable assembly is built with a type N cable connection on one end and a SMA cable connection on the other. Our type N to SMA cable assembly has a male gender on end 1 and a male on end 2. PE3W08704 can also be known as a type N plug to SMA plug cable assembly and will be shipped the same day as it is purchased. This semi-rigid RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.25-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. The semi-rigid RF cable has a between series connection. Our type N male to SMA male cable has a maximum VSWR of 1.4:1.
Type N plug to SMA plug cable assembly PE3W08704 is built with RG402 which is a semi-rigid coax type. The Pasternack semi-rigid type N cable assembly is manufactured with type N to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the clamp/solder attachment method and a brass body with nickel plating, while the other has the solder/solder attachment method and a stainless steel body with gold plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W08704 can also be used in the other direction and will be a SMA male to type N male cable assembly if the opposite connectivity is required.
Type N plug to SMA plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality type N to SMA cable assembly for quick shipment worldwide. Variations of type N and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal type N to SMA RF cable assembly as per your requirements.
