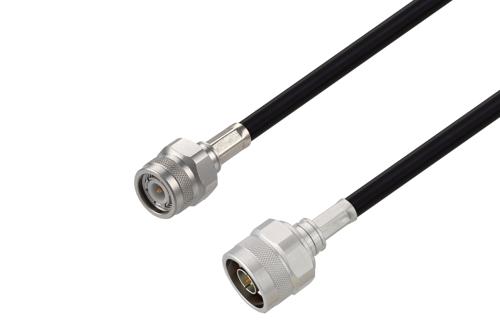

Pasternack’s PE3C10692 type N male to TNC male RF cable assembly using TCOM-240 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The type N male to TNC male cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom type N to TNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a type N cable connection on one end and a TNC cable connection on the other. Our type N to TNC cable assembly has a male gender on end 1 and a male on end 2. PE3C10692 can also be known as a type N plug to TNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.81-inch diameter has copper as the cable’s inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 2.5-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C10692 RF cable has a PE jacket of 0.24-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 84% and a minimum RF shielding of 100 dB. Our type N male to TNC male cable has a maximum VSWR of 1.4:1.
This PE3C10692 type N plug to TNC plug cable assembly is built with TCOM-240, which is a flexible coax type. The Pasternack flexible type N cable assembly is manufactured with type N to TNC cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C10692 can also be used in the other direction and will be a TNC plug to type N plug cable assembly if the opposite connectivity is required.
This type N plug to TNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality type N to TNC cable assembly for quick shipment worldwide. Variations of type N and TNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal type N to TNC RF cable assembly as per your requirements.
