High Power SPDT Electromechanical Relay Switches (>75 Watts)

Check out our new RF calculators & conversion tools...

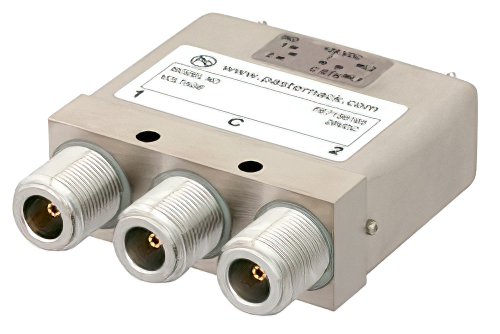

SPDT Electromechanical Relay Latching Switch, DC to 12.4 GHz, 160W, 28V Indicators, TTL, Diodes, Self Cut Off, N

Product ID: PE71S6165
SPDT Electromechanical Relay Latching Switch, DC to 12.4 GHz, 160W, 28V Indicators, TTL, Diodes, Self Cut Off, N


Image Views:  SPDT Electromechanical Relay Latching Switch, DC to 12.4 GHz, 160W, 28V Indicators, TTL, Diodes, Self Cut Off, N high resolution
Zoomalternate image
View 2


Click for:PE71S6165 Datasheet
Available Quantity: 3
Pricing Table
QUANTITYPRICE
1-1$1,458.80
2-4$1,371.27
5-9$1,298.33
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesN
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency12.4 GHz
Impedance50 Ohm
Maximum Input Power160 Watts
Maximum VSWR1.6:1
Maximum Insertion Loss0.6 dB
Minimum Isolation60 dB


SPDT Electromechanical Relay Switch DC to 12.4 GHz, N, 160 Watts, 28V Control with Indicators, TTL

PE71S6165 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses N connectors at 50 Ohm. This N RF relay SPDT switch has a maximum frequency of 12.4 GHz and maximum power of 160 Watts. The Pasternack radio frequency SPDT N electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage and switching speed of 50ms.

N SPDT electro mechanical RF relay switch features Indicators, TTL Logic with an isolation minimum of 60 dB. SPDT electromechanical relay radio frequency switch PE71S6165 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT N coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
