SPDT Electromechanical Relay Pulse Latching Switch, DC to 8 GHz, up to 375W, 28V, Indicators, Hot Switching, N

Product ID: PE7149
SPDT Electromechanical Relay Pulse Latching Switch, DC to 8 GHz, up to 375W, 28V, Indicators, Hot Switching, N

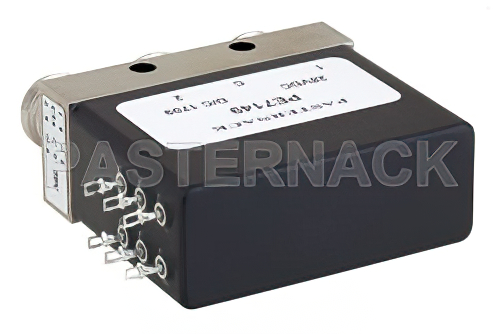

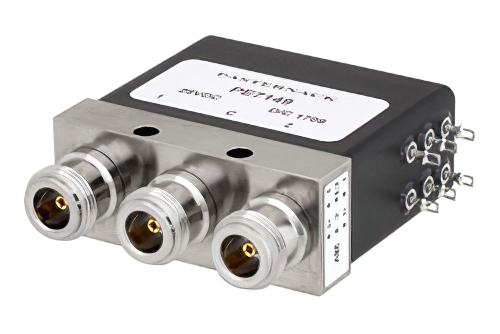

Image Views:  SPDT Electromechanical Relay Pulse Latching Switch, DC to 8 GHz, up to 375W, 28V, Indicators, Hot Switching, N high resolution
Zoomalternate image
View 2


Click for:PE7149 Datasheet
Click for:PE7149 RoHS Cert
Click for:PE7149 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE71S6399
Remaining Quantity Available: 5
Pricing Table
QUANTITYPRICE
1-1$2,887.92
2-4$2,714.64
5-9$2,570.25
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesN
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency8 GHz
Impedance50 Ohm
Maximum Input Power200 Watts
Maximum VSWR1.45:1
Maximum Insertion Loss0.4 dB
Minimum Isolation60 dB


N Electro Mechanical SPDT Switch From DC To 8 GHz Rated To 200 Watts And 24 Volts To 32 Volts With H, I, P Features

PE7149 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses N connectors at 50 Ohm. This N RF relay SPDT switch has a maximum frequency of 8 GHz and maximum power of 200 Watts. The Pasternack radio frequency SPDT N electro-mechanical relay switch is rated at a control voltage of 24 Volts, indicator voltage 32 and switching speed of 20ms.

N SPDT electro mechanical RF relay switch features Hot Switches, Indicators, Pulse Latching with an isolation minimum of 60 dB. SPDT electromechanical relay radio frequency switch PE7149 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT N coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
