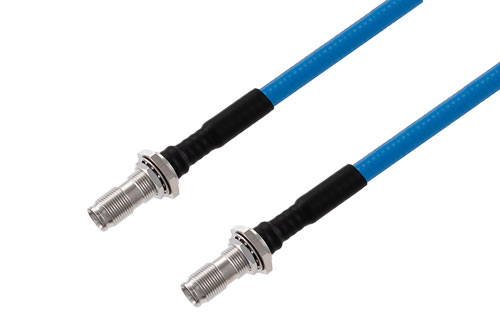

Radio frequency assembly NEX10 female bulkhead to NEX10 female bulkhead low PIM cable using SPP-250-LLPL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The NEX10 female bulkhead to NEX10 female bulkhead low PIM cable using SPP-250-LLPL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom NEX10 to NEX10 cable assembly orders will the ship same business day as well.
Pasternack RF coax low PIM cable assembly is built with a NEX10 bulkhead cable connection on one end and a NEX10 bulkhead cable connection on the other. Our low PIM a NEX10 to a NEX10 cable assembly has female gender on end 1 and female on end 2. PE3W12434 can also be known as a low PIM NEX10 jack to NEX10 jack cable assembly and will be shipped the same day as it is purchased. This RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
NEX10 low PIM cable assemblies from Pasternack are ideal for general purpose, laboratory use and low pim applications. Our PE3W12434 RF cable has a FEP jacket of 0.280-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 155 degrees C. The corrugated RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 76% and a minimum RF shielding of 100 dB.
NEX10 jack to NEX10 jack cable assembly PE3W12434 is built with SPP-250-LLPL which is a corrugated coax type. The Pasternack low passive intermodulation corrugated NEX10 cable assembly is manufactured with NEX10 to NEX10 cable connectors and has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet.
Low PIM NEX10 jack bulkhead to NEX10 jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality NEX10 to NEX10 cable assembly for quick shipment worldwide. Variations of NEX10 cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal NEX10 to NEX10 low PIM RF cable assembly as per your requirements.
